1. Fundamental Framework and Product Structure
1.1 The Nanoscale Architecture of Aerogels

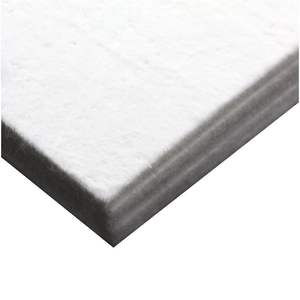

(Aerogel Blanket)
Aerogel coverings are sophisticated thermal insulation materials built upon an one-of-a-kind nanostructured framework, where a solid silica or polymer network covers an ultra-high porosity volume– usually surpassing 90% air.
This framework originates from the sol-gel procedure, in which a fluid forerunner (often tetramethyl orthosilicate or TMOS) goes through hydrolysis and polycondensation to form a wet gel, followed by supercritical or ambient pressure drying to eliminate the fluid without falling down the delicate permeable network.
The resulting aerogel contains interconnected nanoparticles (3– 5 nm in diameter) developing pores on the scale of 10– 50 nm, tiny enough to suppress air molecule motion and thus lessen conductive and convective warmth transfer.
This sensation, referred to as Knudsen diffusion, dramatically minimizes the reliable thermal conductivity of the product, frequently to values between 0.012 and 0.018 W/(m · K) at area temperature– among the lowest of any kind of solid insulator.
In spite of their reduced density (as low as 0.003 g/cm FIVE), pure aerogels are inherently brittle, requiring reinforcement for sensible use in adaptable blanket form.
1.2 Reinforcement and Composite Design
To conquer frailty, aerogel powders or monoliths are mechanically incorporated into fibrous substratums such as glass fiber, polyester, or aramid felts, producing a composite “blanket” that retains phenomenal insulation while getting mechanical toughness.
The reinforcing matrix provides tensile toughness, adaptability, and managing sturdiness, making it possible for the product to be cut, bent, and set up in complex geometries without significant efficiency loss.
Fiber content generally ranges from 5% to 20% by weight, meticulously stabilized to lessen thermal bridging– where fibers perform warmth throughout the covering– while making certain architectural honesty.
Some progressed layouts include hydrophobic surface area treatments (e.g., trimethylsilyl groups) to prevent moisture absorption, which can degrade insulation efficiency and promote microbial growth.
These modifications allow aerogel coverings to maintain stable thermal residential properties even in humid atmospheres, increasing their applicability past controlled research laboratory conditions.
2. Manufacturing Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The manufacturing of aerogel blankets starts with the development of a wet gel within a coarse floor covering, either by impregnating the substratum with a fluid forerunner or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent have to be eliminated under conditions that protect against capillary anxiety from collapsing the nanopores; historically, this required supercritical CO two drying out, a costly and energy-intensive procedure.
Current advances have made it possible for ambient pressure drying through surface alteration and solvent exchange, considerably lowering production expenses and allowing continuous roll-to-roll production.
In this scalable process, long rolls of fiber mat are constantly covered with precursor solution, gelled, dried out, and surface-treated, enabling high-volume output suitable for industrial applications.
This change has been essential in transitioning aerogel coverings from specific niche lab products to readily viable items utilized in building, power, and transport sectors.
2.2 Quality Assurance and Performance Uniformity
Guaranteeing uniform pore framework, regular thickness, and reputable thermal performance across huge manufacturing sets is vital for real-world implementation.
Suppliers employ extensive quality control steps, consisting of laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric evaluation for moisture resistance.
Batch-to-batch reproducibility is essential, particularly in aerospace and oil & gas industries, where failure because of insulation malfunction can have severe repercussions.
Furthermore, standardized testing according to ASTM C177 (warmth circulation meter) or ISO 9288 makes sure accurate coverage of thermal conductivity and enables fair comparison with conventional insulators like mineral woollen or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Throughout Temperature Ranges
Aerogel blankets show outstanding thermal performance not just at ambient temperatures however additionally across extreme arrays– from cryogenic problems listed below -100 ° C to heats surpassing 600 ° C, depending upon the base material and fiber type.
At cryogenic temperature levels, standard foams might fracture or lose efficiency, whereas aerogel coverings remain versatile and keep reduced thermal conductivity, making them excellent for LNG pipes and tank.
In high-temperature applications, such as commercial heaters or exhaust systems, they give effective insulation with minimized thickness compared to bulkier choices, conserving room and weight.
Their reduced emissivity and capability to mirror radiant heat even more enhance performance in radiant obstacle arrangements.
This vast functional envelope makes aerogel blankets uniquely functional amongst thermal administration remedies.
3.2 Acoustic and Fire-Resistant Features
Past thermal insulation, aerogel coverings show noteworthy sound-dampening residential or commercial properties because of their open, tortuous pore structure that dissipates acoustic energy through viscous losses.
They are progressively used in automotive and aerospace cabins to decrease noise pollution without adding considerable mass.
Moreover, most silica-based aerogel blankets are non-combustible, accomplishing Class A fire scores, and do not release harmful fumes when revealed to flame– essential for building safety and public framework.
Their smoke density is exceptionally low, enhancing visibility throughout emergency emptyings.
4. Applications in Market and Emerging Technologies
4.1 Power Effectiveness in Structure and Industrial Systems
Aerogel coverings are transforming power effectiveness in design and commercial design by making it possible for thinner, higher-performance insulation layers.
In structures, they are utilized in retrofitting historic frameworks where wall surface thickness can not be enhanced, or in high-performance façades and windows to reduce thermal bridging.
In oil and gas, they insulate pipes lugging hot fluids or cryogenic LNG, reducing power loss and protecting against condensation or ice formation.
Their lightweight nature additionally minimizes structural tons, particularly valuable in offshore platforms and mobile units.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings secure spacecraft from extreme temperature changes throughout re-entry and shield sensitive instruments from thermal cycling precede.
NASA has actually employed them in Mars vagabonds and astronaut suits for easy thermal policy.
Automotive suppliers integrate aerogel insulation into electric automobile battery loads to stop thermal runaway and boost safety and performance.
Customer items, including outside garments, footwear, and outdoor camping equipment, currently feature aerogel cellular linings for remarkable heat without bulk.
As production costs decrease and sustainability enhances, aerogel coverings are positioned to come to be mainstream remedies in international efforts to minimize energy intake and carbon discharges.
Finally, aerogel coverings stand for a merging of nanotechnology and sensible engineering, delivering unparalleled thermal performance in an adaptable, resilient style.
Their capability to save power, space, and weight while preserving safety and security and ecological compatibility placements them as key enablers of lasting modern technology throughout diverse industries.
