1. Material Basics and Microstructural Characteristics
1.1 Make-up and Crystallographic Properties of Al ₂ O TWO

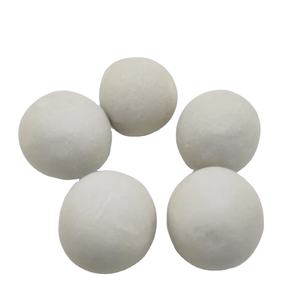

(Alumina Ceramic Balls， Alumina Ceramic Balls)
Alumina ceramic rounds are round elements made from aluminum oxide (Al two O TWO), a totally oxidized, polycrystalline ceramic that exhibits remarkable firmness, chemical inertness, and thermal stability.
The main crystalline stage in high-performance alumina spheres is α-alumina, which adopts a corundum-type hexagonal close-packed structure where aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion lattice, giving high latticework energy and resistance to stage change.
Industrial-grade alumina rounds commonly include 85% to 99.9% Al Two O ₃, with purity straight affecting mechanical strength, put on resistance, and rust efficiency.
High-purity grades (≥ 95% Al Two O FIVE) are sintered to near-theoretical thickness (> 99%) making use of innovative methods such as pressureless sintering or hot isostatic pushing, decreasing porosity and intergranular flaws that might work as tension concentrators.
The resulting microstructure includes penalty, equiaxed grains uniformly distributed throughout the quantity, with grain sizes usually ranging from 1 to 5 micrometers, optimized to stabilize strength and hardness.
1.2 Mechanical and Physical Property Account
Alumina ceramic balls are renowned for their extreme hardness– measured at roughly 1800– 2000 HV on the Vickers range– exceeding most steels and matching tungsten carbide, making them ideal for wear-intensive atmospheres.
Their high compressive strength (up to 2500 MPa) makes certain dimensional security under load, while reduced elastic deformation enhances accuracy in rolling and grinding applications.
Regardless of their brittleness relative to metals, alumina balls exhibit excellent crack durability for porcelains, specifically when grain development is managed throughout sintering.
They preserve structural integrity throughout a wide temperature level variety, from cryogenic conditions as much as 1600 ° C in oxidizing atmospheres, much exceeding the thermal restrictions of polymer or steel equivalents.
In addition, their reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) lessens thermal shock vulnerability, making it possible for use in quickly rising and fall thermal atmospheres such as kilns and warm exchangers.
2. Manufacturing Processes and Quality Assurance
()
2.1 Shaping and Sintering Methods
The manufacturing of alumina ceramic rounds begins with high-purity alumina powder, often originated from calcined bauxite or chemically precipitated hydrates, which is milled to attain submicron bit dimension and narrow dimension circulation.
Powders are then developed into round eco-friendly bodies using methods such as extrusion-spheronization, spray drying, or round developing in rotating frying pans, relying on the wanted size and batch scale.
After forming, green balls undertake a binder burnout stage adhered to by high-temperature sintering, usually in between 1500 ° C and 1700 ° C, where diffusion systems drive densification and grain coarsening.
Precise control of sintering ambience (air or controlled oxygen partial pressure), heating rate, and dwell time is important to accomplishing uniform shrinkage, round geometry, and very little internal problems.
For ultra-high-performance applications, post-sintering therapies such as hot isostatic pushing (HIP) may be applied to eliminate recurring microporosity and further improve mechanical reliability.
2.2 Accuracy Finishing and Metrological Verification
Complying with sintering, alumina balls are ground and polished making use of diamond-impregnated media to accomplish limited dimensional resistances and surface finishes equivalent to bearing-grade steel spheres.
Surface area roughness is generally reduced to less than 0.05 μm Ra, minimizing friction and put on in dynamic call scenarios.
Crucial top quality parameters consist of sphericity (discrepancy from perfect satiation), diameter variation, surface stability, and thickness harmony, every one of which are measured utilizing optical interferometry, coordinate measuring makers (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA define resistance grades for ceramic spheres made use of in bearings, making sure interchangeability and performance consistency across makers.
Non-destructive testing techniques like ultrasonic assessment or X-ray microtomography are utilized to discover inner cracks, spaces, or incorporations that can compromise long-lasting integrity.
3. Practical Advantages Over Metal and Polymer Counterparts
3.1 Chemical and Rust Resistance in Harsh Environments
One of the most significant advantages of alumina ceramic spheres is their impressive resistance to chemical assault.
They remain inert in the presence of strong acids (other than hydrofluoric acid), alkalis, organic solvents, and saline remedies, making them ideal for usage in chemical processing, pharmaceutical production, and marine applications where steel parts would certainly rust rapidly.
This inertness stops contamination of sensitive media, a critical consider food processing, semiconductor fabrication, and biomedical devices.
Unlike steel spheres, alumina does not generate rust or metallic ions, ensuring procedure purity and minimizing upkeep regularity.
Their non-magnetic nature better expands applicability to MRI-compatible gadgets and electronic production line where magnetic disturbance need to be stayed clear of.
3.2 Put On Resistance and Long Life Span
In rough or high-cycle settings, alumina ceramic rounds exhibit wear rates orders of magnitude less than steel or polymer alternatives.
This outstanding sturdiness translates right into extensive service periods, lowered downtime, and lower overall price of possession regardless of greater initial purchase prices.
They are extensively made use of as grinding media in ball mills for pigment diffusion, mineral handling, and nanomaterial synthesis, where their inertness stops contamination and their solidity guarantees reliable bit size reduction.
In mechanical seals and valve components, alumina rounds keep limited resistances over millions of cycles, standing up to erosion from particulate-laden fluids.
4. Industrial and Emerging Applications
4.1 Bearings, Shutoffs, and Liquid Handling Equipments
Alumina ceramic spheres are important to hybrid sphere bearings, where they are paired with steel or silicon nitride races to integrate the low thickness and deterioration resistance of ceramics with the durability of steels.
Their low density (~ 3.9 g/cm TWO, regarding 40% lighter than steel) decreases centrifugal packing at high rotational speeds, allowing much faster operation with lower heat generation and boosted power performance.
Such bearings are used in high-speed pins, dental handpieces, and aerospace systems where reliability under severe problems is vital.
In liquid control applications, alumina rounds work as check shutoff aspects in pumps and metering tools, especially for hostile chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface area and dimensional security make sure repeatable securing efficiency and resistance to galling or taking.
4.2 Biomedical, Energy, and Advanced Modern Technology Utilizes
Beyond typical industrial roles, alumina ceramic rounds are locating use in biomedical implants and diagnostic equipment as a result of their biocompatibility and radiolucency.
They are used in fabricated joints and oral prosthetics where wear particles should be lessened to prevent inflammatory feedbacks.
In energy systems, they work as inert tracers in storage tank characterization or as heat-stable parts in concentrated solar power and fuel cell assemblies.
Research study is likewise exploring functionalized alumina spheres for catalytic assistance, sensor components, and precision calibration standards in assessment.
In summary, alumina ceramic balls exhibit exactly how advanced porcelains bridge the space between structural toughness and practical precision.
Their distinct mix of solidity, chemical inertness, thermal security, and dimensional accuracy makes them important popular design systems throughout diverse markets.
As manufacturing methods remain to enhance, their efficiency and application extent are anticipated to broaden further into next-generation technologies.
