1. Chemical and Structural Principles of Boron Carbide

1.1 Crystallography and Stoichiometric Variability

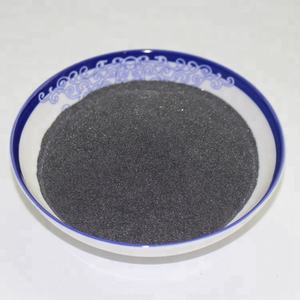

(Boron Carbide Podwer)

Boron carbide (B ₄ C) is a non-metallic ceramic compound renowned for its exceptional solidity, thermal security, and neutron absorption capacity, positioning it among the hardest well-known materials– exceeded only by cubic boron nitride and diamond.

Its crystal framework is based on a rhombohedral lattice composed of 12-atom icosahedra (mostly B ₁₂ or B ₁₁ C) interconnected by direct C-B-C or C-B-B chains, developing a three-dimensional covalent network that conveys phenomenal mechanical stamina.

Unlike numerous porcelains with fixed stoichiometry, boron carbide displays a wide range of compositional adaptability, typically ranging from B FOUR C to B ₁₀. SIX C, because of the alternative of carbon atoms within the icosahedra and architectural chains.

This irregularity influences essential residential properties such as hardness, electric conductivity, and thermal neutron capture cross-section, allowing for home tuning based on synthesis problems and desired application.

The presence of inherent flaws and problem in the atomic plan additionally contributes to its special mechanical behavior, consisting of a phenomenon referred to as “amorphization under anxiety” at high stress, which can limit performance in severe influence situations.

1.2 Synthesis and Powder Morphology Control

Boron carbide powder is largely created with high-temperature carbothermal decrease of boron oxide (B ₂ O ₃) with carbon resources such as petroleum coke or graphite in electrical arc heaters at temperatures in between 1800 ° C and 2300 ° C.

The reaction continues as: B TWO O FOUR + 7C → 2B FOUR C + 6CO, yielding rugged crystalline powder that calls for succeeding milling and purification to accomplish fine, submicron or nanoscale particles suitable for advanced applications.

Alternate techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer paths to greater pureness and regulated bit size distribution, though they are usually limited by scalability and cost.

Powder characteristics– including bit size, shape, load state, and surface area chemistry– are crucial criteria that influence sinterability, packaging density, and last element performance.

As an example, nanoscale boron carbide powders exhibit improved sintering kinetics due to high surface energy, enabling densification at lower temperatures, yet are susceptible to oxidation and call for protective environments throughout handling and handling.

Surface functionalization and layer with carbon or silicon-based layers are significantly utilized to boost dispersibility and hinder grain growth throughout loan consolidation.

( Boron Carbide Podwer)

2. Mechanical Features and Ballistic Performance Mechanisms

2.1 Firmness, Fracture Durability, and Put On Resistance

Boron carbide powder is the forerunner to among one of the most effective light-weight shield products available, owing to its Vickers solidity of about 30– 35 GPa, which allows it to wear down and blunt inbound projectiles such as bullets and shrapnel.

When sintered into thick ceramic floor tiles or integrated into composite shield systems, boron carbide outshines steel and alumina on a weight-for-weight basis, making it optimal for workers protection, automobile shield, and aerospace protecting.

Nevertheless, despite its high firmness, boron carbide has relatively low crack strength (2.5– 3.5 MPa · m ¹ / TWO), making it prone to splitting under local influence or duplicated loading.

This brittleness is aggravated at high pressure rates, where dynamic failure systems such as shear banding and stress-induced amorphization can lead to disastrous loss of architectural honesty.

Continuous research focuses on microstructural engineering– such as introducing additional phases (e.g., silicon carbide or carbon nanotubes), developing functionally graded composites, or designing ordered architectures– to minimize these restrictions.

2.2 Ballistic Power Dissipation and Multi-Hit Capacity

In individual and automotive shield systems, boron carbide floor tiles are typically backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in recurring kinetic energy and contain fragmentation.

Upon influence, the ceramic layer cracks in a controlled fashion, dissipating energy via systems including fragment fragmentation, intergranular cracking, and stage improvement.

The great grain structure stemmed from high-purity, nanoscale boron carbide powder boosts these energy absorption procedures by enhancing the density of grain limits that restrain crack breeding.

Current innovations in powder handling have brought about the advancement of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that boost multi-hit resistance– an important requirement for army and law enforcement applications.

These engineered products preserve safety performance also after preliminary influence, dealing with a crucial restriction of monolithic ceramic shield.

3. Neutron Absorption and Nuclear Engineering Applications

3.1 Interaction with Thermal and Rapid Neutrons

Past mechanical applications, boron carbide powder plays a vital role in nuclear technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).

When incorporated into control rods, securing products, or neutron detectors, boron carbide effectively regulates fission responses by capturing neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear reaction, creating alpha particles and lithium ions that are conveniently included.

This building makes it important in pressurized water reactors (PWRs), boiling water activators (BWRs), and study reactors, where precise neutron change control is crucial for secure procedure.

The powder is typically fabricated right into pellets, finishes, or spread within steel or ceramic matrices to create composite absorbers with customized thermal and mechanical residential or commercial properties.

3.2 Stability Under Irradiation and Long-Term Efficiency

A crucial benefit of boron carbide in nuclear atmospheres is its high thermal security and radiation resistance up to temperature levels exceeding 1000 ° C.

However, extended neutron irradiation can cause helium gas buildup from the (n, α) response, causing swelling, microcracking, and destruction of mechanical integrity– a phenomenon referred to as “helium embrittlement.”

To alleviate this, scientists are establishing doped boron carbide formulations (e.g., with silicon or titanium) and composite layouts that fit gas release and keep dimensional security over prolonged life span.

Furthermore, isotopic enrichment of ¹⁰ B boosts neutron capture efficiency while reducing the complete material quantity required, boosting reactor style flexibility.

4. Arising and Advanced Technological Integrations

4.1 Additive Production and Functionally Rated Components

Recent development in ceramic additive manufacturing has actually allowed the 3D printing of intricate boron carbide parts making use of methods such as binder jetting and stereolithography.

In these processes, fine boron carbide powder is selectively bound layer by layer, adhered to by debinding and high-temperature sintering to achieve near-full thickness.

This ability allows for the manufacture of personalized neutron shielding geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally graded designs.

Such architectures maximize performance by combining hardness, sturdiness, and weight efficiency in a single component, opening brand-new frontiers in defense, aerospace, and nuclear engineering.

4.2 High-Temperature and Wear-Resistant Industrial Applications

Past protection and nuclear industries, boron carbide powder is used in unpleasant waterjet reducing nozzles, sandblasting liners, and wear-resistant coatings because of its severe solidity and chemical inertness.

It outmatches tungsten carbide and alumina in abrasive settings, especially when subjected to silica sand or other difficult particulates.

In metallurgy, it acts as a wear-resistant lining for hoppers, chutes, and pumps dealing with unpleasant slurries.

Its reduced density (~ 2.52 g/cm TWO) more boosts its appeal in mobile and weight-sensitive industrial devices.

As powder top quality boosts and handling technologies development, boron carbide is poised to increase into next-generation applications consisting of thermoelectric materials, semiconductor neutron detectors, and space-based radiation shielding.

To conclude, boron carbide powder stands for a foundation product in extreme-environment design, integrating ultra-high solidity, neutron absorption, and thermal strength in a solitary, versatile ceramic system.

Its duty in securing lives, making it possible for nuclear energy, and progressing commercial performance emphasizes its critical value in modern innovation.

With proceeded development in powder synthesis, microstructural layout, and manufacturing combination, boron carbide will certainly stay at the leading edge of sophisticated materials growth for decades to come.
