1. Introduction to Oil Immersed Transformers
In the detailed web of our modern-day electric grid, transformers play a crucial duty, calmly stepping voltage backwards and forwards to make sure electricity can be transferred effectively over fars away and distributed safely to our homes and industries. Amongst the various kinds offered, the oil submersed transformer stands as a testament to proven integrity and toughness. For decades, these workhorses have actually created the backbone of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that utilizes a specialized protecting oil as both a coolant and an insulating tool. This style is predominantly utilized for medium to high-power applications, making it a foundation of electric framework. This overview dives deep into the globe of oil immersed power transformers and oil submersed distribution transformers, exploring their modern technology, applications, and their evolving role in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed tank loaded with insulating oil. The key feature of the oil is twofold:
1. Insulation: The oil has high dielectric toughness, successfully insulating the high-voltage windings from the transformer’s core and based container. This prevents brief circuits and electrical failures.
2. Air conditioning: As the transformer runs, the windings produce substantial warmth due to I ² R losses. The circulating oil absorbs this heat, convects it to the transformer’s tank walls, and dissipates it into the surrounding air. Larger systems frequently include radiators or fins to raise the surface for a lot more efficient cooling.
This dual-purpose use oil makes the oil submersed transformer extremely efficient and robust, with the ability of handling high tons and enduring transient overloads much better than several dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil immersed transformers, they offer unique features within the power system network. Comprehending the difference is critical.
An oil submersed power transformer is a heavyweight, usually used in transmission networks at generating terminals and major substations. Their key role is to “step-up” the voltage created at the nuclear power plant to exceptionally high levels (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for further distribution. They are defined by their very high power scores (commonly surpassing 100 MVA), complex building, and on-load tap changers for voltage law.
An oil involved circulation transformer, on the various other hand, carries out the last action in the power delivery chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the reduced voltages (e.g., 400/230 V) used by commercial and property consumers. You frequently find them on energy poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (normally approximately 2,500 kVA), and are designed for maximum efficiency at lower, more continuous loads.

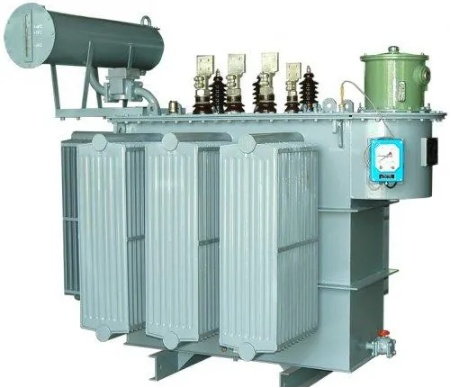

(Oil immersed power transformer)
2. Trick Advantages of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintentional. It uses a collection of compelling advantages that make it the recommended option for lots of requiring applications.
2.1 Superior Air Conditioning and Overload Ability
The superior thermal capability of oil compared to air permits an oil submersed power transformer to manage and dissipate warmth far more effectively. This equates to a greater overload capability. Throughout durations of height electricity need, an oil submersed transformer can handle momentary overloads without receiving damage, an important feature for maintaining grid stability. The oil’s blood circulation makes sure even heat distribution, stopping local locations that can degrade insulation in time.
2.2 Improved Insulation and Long Life Span
The combination of high-grade mineral oil and meticulously fertilized paper insulation creates a dielectric system of exceptional stamina. This robust insulation system protects the transformer from voltage rises and transients, adding to an operational lifespan that can extend to 30-40 years or more with proper upkeep. The sealed tank also safeguards the internal elements from moisture, dust, and various other climatic pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently one of the most economical choice. The products utilized– mineral oil, steel container, and copper/aluminum windings– supply a favorable equilibrium of performance and price. The high effectiveness of these transformers, specifically at their rated tons, leads to reduced power losses over their life time, leading to considerable price savings for utility firms and huge commercial individuals.
3. Warm Subjects and Future Trends
The world of oil submersed transformers is not static. It is continuously evolving to fulfill brand-new challenges and incorporate with contemporary technologies.
3.1 Naturally Degradable and Fireproof Oils
Environmental and safety and security issues are driving a substantial shift far from traditional mineral oil. The market is swiftly taking on oil immersed transformers loaded with naturally degradable esters (synthetic or natural). These oils use a higher fire point (making them K-class fireproof), are less toxic, and are conveniently biodegradable, considerably lowering the ecological influence in situation of a leakage. This trend is making oil immersed circulation transformers more secure for installation in city areas and eco delicate areas.
3.2 Combination with Smart Grids and IoT
The modern oil involved power transformer is coming to be a smart node in the smart grid. Sensing units are being incorporated to keep track of key criteria in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Detecting mistake gases created within the oil to anticipate incipient faults.
Temperature Monitoring: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Monitoring.
This data, sent using IoT (Web of Things) systems, allows anticipating maintenance, stops unplanned outages, and optimizes transformer application and lifespan.
3.3 Sustaining the Renewable Energy Shift
The global promote renewables is producing new demand for oil submersed transformers. Large-scale solar ranches and wind power installations need durable oil submersed power transformers to step up the generated voltage to transmission degrees. Moreover, the intermittent nature of renewables locations greater anxiety on grid elements, and the tested integrity and overload capability of oil submersed transformers make them optimal for this essential role.
4. Selection and Maintenance Best Practices
Selecting the appropriate transformer and preserving it properly is essential to a reliable power system.
4.1 How to Pick the Right Oil Immersed Transformer
Picking in between an oil immersed power transformer and an oil submersed circulation transformer relies on the application. Secret considerations consist of:
1. Voltage Degree and kVA Score: Suit the transformer’s requirements to your system’s needs.
2. Application: Transmission substation, plant, or commercial distribution.
3. Place: Indoor vs. outside, ecological conditions, and fire security guidelines (which might affect the selection of shielding oil).
4. Performance Criteria: Follow local efficiency standards like DOE (U.S.A.) or EU CoC (Europe).
5. Spending plan: Think about both the initial capital expense and the complete cost of possession, consisting of losses.
(Oil immersed distribution transformer)
4.2 Important Upkeep for Longevity
Proactive maintenance is essential for any kind of oil submersed transformer. A comprehensive program needs to consist of:
1. Regular Oil Tasting and Screening: Periodic DGA and screening of dielectric toughness and wetness web content are the most reliable methods to examine the health of the transformer.
2. Bushing and Insulation Examination: Visual look for fractures, contamination, or leaks.
3. Tap Changer Upkeep: Regular assessment and maintenance of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Making certain the tank exterior, radiators, and breathers are tidy and functional.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and an ubiquitous oil immersed distribution transformer, stays an irreplaceable component of our worldwide energy framework. Its proven layout, combined with continuous technologies in shielding fluids and digital tracking, guarantees it will remain to be a trustworthy, efficient, and intelligent solution for powering our world for decades to come. As we develop the grids of the future, incorporating more renewables and digital knowledge, the durable and versatile oil submersed transformer will most certainly go to the heart of it.
