1. Basic Features and Nanoscale Actions of Silicon at the Submicron Frontier

1.1 Quantum Arrest and Electronic Structure Improvement

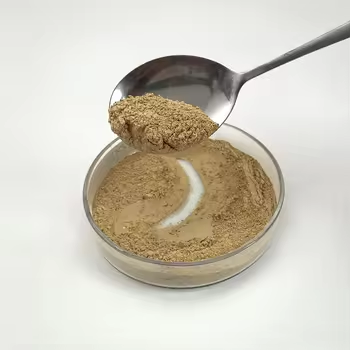

(Nano-Silicon Powder)

Nano-silicon powder, composed of silicon bits with characteristic measurements listed below 100 nanometers, stands for a paradigm change from mass silicon in both physical actions and functional energy.

While mass silicon is an indirect bandgap semiconductor with a bandgap of approximately 1.12 eV, nano-sizing causes quantum confinement results that fundamentally change its digital and optical residential or commercial properties.

When the fragment diameter techniques or falls listed below the exciton Bohr radius of silicon (~ 5 nm), charge carriers end up being spatially restricted, bring about a widening of the bandgap and the development of noticeable photoluminescence– a sensation absent in macroscopic silicon.

This size-dependent tunability makes it possible for nano-silicon to produce light across the noticeable range, making it an encouraging prospect for silicon-based optoelectronics, where typical silicon fails because of its inadequate radiative recombination effectiveness.

In addition, the increased surface-to-volume ratio at the nanoscale enhances surface-related phenomena, consisting of chemical sensitivity, catalytic activity, and interaction with electromagnetic fields.

These quantum results are not just academic inquisitiveness however develop the foundation for next-generation applications in power, sensing, and biomedicine.

1.2 Morphological Variety and Surface Area Chemistry

Nano-silicon powder can be manufactured in different morphologies, including spherical nanoparticles, nanowires, permeable nanostructures, and crystalline quantum dots, each offering distinct benefits depending on the target application.

Crystalline nano-silicon generally keeps the ruby cubic framework of mass silicon yet exhibits a higher density of surface area issues and dangling bonds, which need to be passivated to stabilize the product.

Surface functionalization– usually accomplished via oxidation, hydrosilylation, or ligand attachment– plays an important function in identifying colloidal security, dispersibility, and compatibility with matrices in compounds or biological environments.

For instance, hydrogen-terminated nano-silicon reveals high reactivity and is vulnerable to oxidation in air, whereas alkyl- or polyethylene glycol (PEG)-coated fragments display boosted security and biocompatibility for biomedical use.

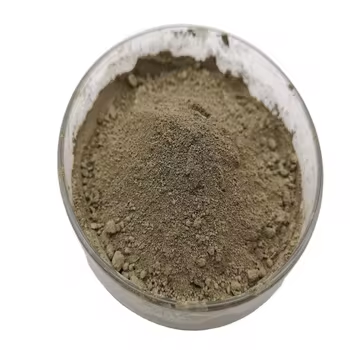

( Nano-Silicon Powder)

The presence of a native oxide layer (SiOₓ) on the bit surface area, also in minimal quantities, dramatically influences electric conductivity, lithium-ion diffusion kinetics, and interfacial responses, particularly in battery applications.

Comprehending and regulating surface chemistry is consequently necessary for harnessing the full capacity of nano-silicon in functional systems.

2. Synthesis Methods and Scalable Fabrication Techniques

2.1 Top-Down Techniques: Milling, Etching, and Laser Ablation

The manufacturing of nano-silicon powder can be generally categorized into top-down and bottom-up approaches, each with unique scalability, pureness, and morphological control qualities.

Top-down strategies include the physical or chemical decrease of bulk silicon into nanoscale pieces.

High-energy ball milling is a commonly used industrial approach, where silicon chunks undergo intense mechanical grinding in inert ambiences, resulting in micron- to nano-sized powders.

While economical and scalable, this technique usually introduces crystal defects, contamination from crushing media, and broad bit dimension circulations, calling for post-processing purification.

Magnesiothermic reduction of silica (SiO TWO) complied with by acid leaching is an additional scalable path, especially when utilizing natural or waste-derived silica sources such as rice husks or diatoms, supplying a lasting path to nano-silicon.

Laser ablation and reactive plasma etching are much more exact top-down techniques, capable of creating high-purity nano-silicon with controlled crystallinity, though at greater expense and reduced throughput.

2.2 Bottom-Up Methods: Gas-Phase and Solution-Phase Growth

Bottom-up synthesis enables better control over bit size, shape, and crystallinity by developing nanostructures atom by atom.

Chemical vapor deposition (CVD) and plasma-enhanced CVD (PECVD) make it possible for the development of nano-silicon from gaseous precursors such as silane (SiH FOUR) or disilane (Si two H ₆), with criteria like temperature level, pressure, and gas flow dictating nucleation and growth kinetics.

These methods are especially efficient for generating silicon nanocrystals installed in dielectric matrices for optoelectronic devices.

Solution-phase synthesis, consisting of colloidal paths making use of organosilicon substances, enables the production of monodisperse silicon quantum dots with tunable exhaust wavelengths.

Thermal disintegration of silane in high-boiling solvents or supercritical fluid synthesis additionally produces high-grade nano-silicon with slim dimension distributions, ideal for biomedical labeling and imaging.

While bottom-up techniques usually generate remarkable material high quality, they face difficulties in large-scale manufacturing and cost-efficiency, necessitating ongoing research into hybrid and continuous-flow procedures.

3. Energy Applications: Reinventing Lithium-Ion and Beyond-Lithium Batteries

3.1 Function in High-Capacity Anodes for Lithium-Ion Batteries

One of one of the most transformative applications of nano-silicon powder hinges on energy storage, particularly as an anode material in lithium-ion batteries (LIBs).

Silicon provides a theoretical particular capability of ~ 3579 mAh/g based on the formation of Li ₁₅ Si Four, which is virtually ten times more than that of conventional graphite (372 mAh/g).

However, the large volume expansion (~ 300%) during lithiation causes particle pulverization, loss of electric get in touch with, and continual strong electrolyte interphase (SEI) development, leading to fast ability fade.

Nanostructuring reduces these concerns by shortening lithium diffusion courses, fitting strain more effectively, and lowering fracture possibility.

Nano-silicon in the kind of nanoparticles, permeable frameworks, or yolk-shell structures enables relatively easy to fix cycling with boosted Coulombic performance and cycle life.

Commercial battery technologies currently integrate nano-silicon blends (e.g., silicon-carbon composites) in anodes to enhance power thickness in customer electronics, electrical automobiles, and grid storage space systems.

3.2 Possible in Sodium-Ion, Potassium-Ion, and Solid-State Batteries

Beyond lithium-ion systems, nano-silicon is being checked out in emerging battery chemistries.

While silicon is less reactive with sodium than lithium, nano-sizing boosts kinetics and allows restricted Na ⁺ insertion, making it a prospect for sodium-ion battery anodes, especially when alloyed or composited with tin or antimony.

In solid-state batteries, where mechanical security at electrode-electrolyte user interfaces is essential, nano-silicon’s capability to undertake plastic deformation at little scales reduces interfacial tension and improves contact maintenance.

Furthermore, its compatibility with sulfide- and oxide-based strong electrolytes opens methods for safer, higher-energy-density storage space remedies.

Research remains to maximize interface design and prelithiation techniques to take full advantage of the longevity and performance of nano-silicon-based electrodes.

4. Emerging Frontiers in Photonics, Biomedicine, and Composite Materials

4.1 Applications in Optoelectronics and Quantum Light

The photoluminescent buildings of nano-silicon have rejuvenated efforts to create silicon-based light-emitting tools, an enduring obstacle in incorporated photonics.

Unlike mass silicon, nano-silicon quantum dots can show reliable, tunable photoluminescence in the visible to near-infrared range, allowing on-chip source of lights suitable with corresponding metal-oxide-semiconductor (CMOS) technology.

These nanomaterials are being incorporated into light-emitting diodes (LEDs), photodetectors, and waveguide-coupled emitters for optical interconnects and sensing applications.

In addition, surface-engineered nano-silicon exhibits single-photon exhaust under particular issue setups, placing it as a prospective platform for quantum information processing and secure communication.

4.2 Biomedical and Ecological Applications

In biomedicine, nano-silicon powder is getting focus as a biocompatible, biodegradable, and non-toxic choice to heavy-metal-based quantum dots for bioimaging and medication distribution.

Surface-functionalized nano-silicon fragments can be developed to target particular cells, release restorative agents in feedback to pH or enzymes, and provide real-time fluorescence monitoring.

Their destruction into silicic acid (Si(OH)₄), a normally occurring and excretable substance, minimizes long-term toxicity problems.

Additionally, nano-silicon is being investigated for ecological removal, such as photocatalytic degradation of pollutants under noticeable light or as a lowering agent in water treatment processes.

In composite materials, nano-silicon boosts mechanical toughness, thermal security, and use resistance when integrated into metals, porcelains, or polymers, especially in aerospace and vehicle components.

In conclusion, nano-silicon powder stands at the intersection of basic nanoscience and commercial advancement.

Its unique combination of quantum effects, high sensitivity, and versatility throughout power, electronics, and life sciences emphasizes its function as a vital enabler of next-generation modern technologies.

As synthesis methods breakthrough and integration challenges relapse, nano-silicon will continue to drive development towards higher-performance, lasting, and multifunctional product systems.
