1. Material Fundamentals and Architectural Feature

1.1 Crystal Chemistry and Polymorphism

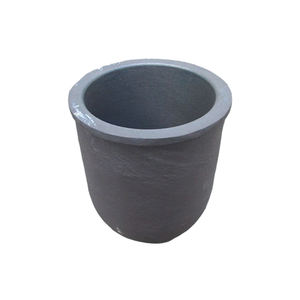

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral latticework, developing among one of the most thermally and chemically robust materials recognized.

It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.

The strong Si– C bonds, with bond power surpassing 300 kJ/mol, provide phenomenal firmness, thermal conductivity, and resistance to thermal shock and chemical strike.

In crucible applications, sintered or reaction-bonded SiC is favored because of its capability to preserve structural stability under extreme thermal gradients and destructive molten atmospheres.

Unlike oxide ceramics, SiC does not go through turbulent stage changes approximately its sublimation factor (~ 2700 ° C), making it excellent for sustained operation over 1600 ° C.

1.2 Thermal and Mechanical Efficiency

A specifying feature of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes uniform warm circulation and decreases thermal stress and anxiety throughout quick heating or air conditioning.

This home contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to splitting under thermal shock.

SiC also shows excellent mechanical strength at elevated temperatures, keeping over 80% of its room-temperature flexural stamina (up to 400 MPa) even at 1400 ° C.

Its low coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, a vital consider duplicated biking in between ambient and operational temperatures.

Furthermore, SiC shows superior wear and abrasion resistance, guaranteeing long life span in atmospheres entailing mechanical handling or rough melt flow.

2. Manufacturing Methods and Microstructural Control

( Silicon Carbide Crucibles)

2.1 Sintering Strategies and Densification Methods

Business SiC crucibles are primarily produced with pressureless sintering, reaction bonding, or warm pushing, each offering distinct benefits in cost, purity, and efficiency.

Pressureless sintering entails compacting great SiC powder with sintering aids such as boron and carbon, complied with by high-temperature treatment (2000– 2200 ° C )in inert environment to attain near-theoretical density.

This technique yields high-purity, high-strength crucibles ideal for semiconductor and advanced alloy processing.

Reaction-bonded SiC (RBSC) is produced by infiltrating a permeable carbon preform with liquified silicon, which responds to form β-SiC sitting, resulting in a composite of SiC and residual silicon.

While slightly reduced in thermal conductivity as a result of metallic silicon inclusions, RBSC provides superb dimensional stability and lower production expense, making it prominent for massive commercial usage.

Hot-pressed SiC, though extra costly, provides the highest possible density and pureness, reserved for ultra-demanding applications such as single-crystal development.

2.2 Surface Quality and Geometric Precision

Post-sintering machining, including grinding and splashing, guarantees accurate dimensional tolerances and smooth internal surface areas that reduce nucleation sites and reduce contamination danger.

Surface area roughness is thoroughly regulated to avoid melt bond and promote simple release of solidified products.

Crucible geometry– such as wall surface density, taper angle, and bottom curvature– is maximized to balance thermal mass, architectural strength, and compatibility with heater heating elements.

Custom-made layouts fit particular melt quantities, home heating profiles, and material sensitivity, guaranteeing ideal performance throughout varied industrial procedures.

Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, validates microstructural homogeneity and lack of flaws like pores or splits.

3. Chemical Resistance and Communication with Melts

3.1 Inertness in Hostile Atmospheres

SiC crucibles exhibit phenomenal resistance to chemical strike by molten steels, slags, and non-oxidizing salts, outperforming conventional graphite and oxide ceramics.

They are steady touching molten aluminum, copper, silver, and their alloys, withstanding wetting and dissolution due to low interfacial power and development of protective surface area oxides.

In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that could deteriorate digital properties.

However, under very oxidizing conditions or in the presence of alkaline changes, SiC can oxidize to develop silica (SiO TWO), which might react further to form low-melting-point silicates.

As a result, SiC is ideal fit for neutral or lowering environments, where its security is made best use of.

3.2 Limitations and Compatibility Considerations

In spite of its robustness, SiC is not widely inert; it responds with particular liquified products, specifically iron-group steels (Fe, Ni, Carbon monoxide) at high temperatures via carburization and dissolution procedures.

In liquified steel handling, SiC crucibles degrade swiftly and are consequently stayed clear of.

Similarly, alkali and alkaline planet metals (e.g., Li, Na, Ca) can reduce SiC, releasing carbon and creating silicides, restricting their use in battery product synthesis or responsive metal casting.

For liquified glass and porcelains, SiC is usually suitable but might introduce trace silicon into highly delicate optical or electronic glasses.

Comprehending these material-specific communications is essential for choosing the proper crucible type and making sure procedure pureness and crucible long life.

4. Industrial Applications and Technical Evolution

4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors

SiC crucibles are vital in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they withstand long term direct exposure to molten silicon at ~ 1420 ° C.

Their thermal security guarantees uniform condensation and minimizes dislocation density, straight influencing solar efficiency.

In factories, SiC crucibles are utilized for melting non-ferrous steels such as aluminum and brass, using longer service life and lowered dross development contrasted to clay-graphite alternatives.

They are likewise employed in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic substances.

4.2 Future Fads and Advanced Product Combination

Arising applications include making use of SiC crucibles in next-generation nuclear materials screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O TWO) are being applied to SiC surfaces to better improve chemical inertness and protect against silicon diffusion in ultra-high-purity processes.

Additive production of SiC parts making use of binder jetting or stereolithography is under advancement, encouraging facility geometries and quick prototyping for specialized crucible styles.

As demand grows for energy-efficient, sturdy, and contamination-free high-temperature processing, silicon carbide crucibles will certainly continue to be a cornerstone modern technology in advanced products manufacturing.

In conclusion, silicon carbide crucibles represent an essential enabling component in high-temperature industrial and scientific procedures.

Their exceptional mix of thermal stability, mechanical strength, and chemical resistance makes them the material of choice for applications where efficiency and reliability are paramount.
