1. Architectural Characteristics and Distinct Bonding Nature

1.1 Crystal Style and Layered Atomic Setup

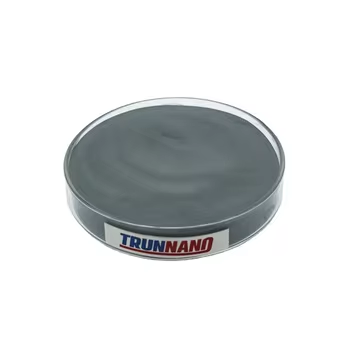

(Ti₃AlC₂ powder)

Ti two AlC two belongs to an unique class of layered ternary ceramics known as MAX phases, where “M” signifies an early transition metal, “A” represents an A-group (mostly IIIA or IVA) aspect, and “X” represents carbon and/or nitrogen.

Its hexagonal crystal structure (area team P6 SIX/ mmc) contains alternating layers of edge-sharing Ti six C octahedra and light weight aluminum atoms organized in a nanolaminate style: Ti– C– Ti– Al– Ti– C– Ti, forming a 312-type MAX phase.

This gotten piling lead to strong covalent Ti– C bonds within the transition metal carbide layers, while the Al atoms stay in the A-layer, contributing metallic-like bonding attributes.

The combination of covalent, ionic, and metal bonding endows Ti six AlC two with an unusual crossbreed of ceramic and metal buildings, distinguishing it from traditional monolithic porcelains such as alumina or silicon carbide.

High-resolution electron microscopy reveals atomically sharp interfaces between layers, which promote anisotropic physical behaviors and one-of-a-kind contortion systems under anxiety.

This layered style is essential to its damage tolerance, allowing systems such as kink-band development, delamination, and basal plane slip– unusual in fragile porcelains.

1.2 Synthesis and Powder Morphology Control

Ti five AlC two powder is usually manufactured through solid-state reaction routes, including carbothermal decrease, hot pushing, or spark plasma sintering (SPS), starting from elemental or compound forerunners such as Ti, Al, and carbon black or TiC.

A typical reaction pathway is: 3Ti + Al + 2C → Ti Three AlC ₂, performed under inert environment at temperatures in between 1200 ° C and 1500 ° C to stop aluminum dissipation and oxide formation.

To acquire great, phase-pure powders, exact stoichiometric control, extended milling times, and optimized home heating accounts are essential to reduce contending stages like TiC, TiAl, or Ti ₂ AlC.

Mechanical alloying complied with by annealing is widely utilized to improve reactivity and homogeneity at the nanoscale.

The resulting powder morphology– ranging from angular micron-sized particles to plate-like crystallites– depends on processing criteria and post-synthesis grinding.

Platelet-shaped particles reflect the fundamental anisotropy of the crystal structure, with bigger measurements along the basal planes and thin piling in the c-axis direction.

Advanced characterization via X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS) makes sure stage pureness, stoichiometry, and bit dimension circulation suitable for downstream applications.

2. Mechanical and Useful Quality

2.1 Damage Tolerance and Machinability


( Ti₃AlC₂ powder)

One of the most remarkable attributes of Ti six AlC ₂ powder is its exceptional damages tolerance, a building rarely located in conventional porcelains.

Unlike fragile materials that fracture catastrophically under tons, Ti ₃ AlC ₂ exhibits pseudo-ductility via mechanisms such as microcrack deflection, grain pull-out, and delamination along weak Al-layer user interfaces.

This permits the material to take in energy before failure, causing greater crack durability– generally varying from 7 to 10 MPa · m 1ST/ TWO– contrasted to
