1. Product Structures and Synergistic Style
1.1 Innate Residences of Component Phases

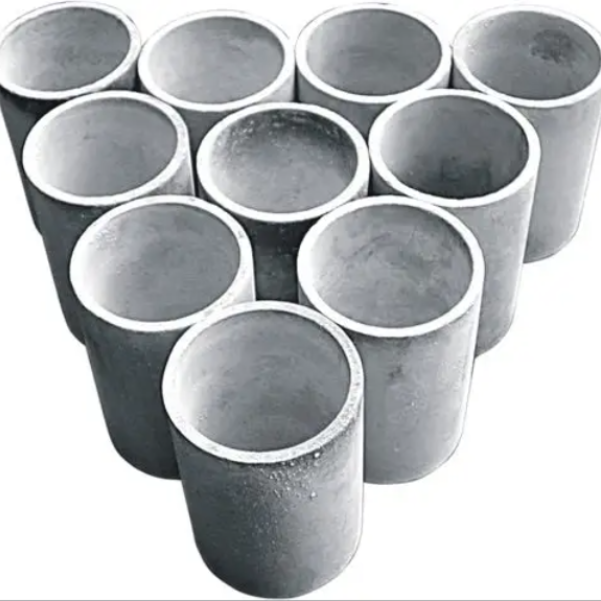

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N FOUR) and silicon carbide (SiC) are both covalently adhered, non-oxide porcelains renowned for their remarkable performance in high-temperature, harsh, and mechanically demanding atmospheres.
Silicon nitride displays outstanding crack sturdiness, thermal shock resistance, and creep security as a result of its one-of-a-kind microstructure composed of extended β-Si six N four grains that make it possible for split deflection and connecting mechanisms.
It keeps stamina up to 1400 ° C and has a reasonably reduced thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal stress and anxieties during rapid temperature modifications.
On the other hand, silicon carbide offers exceptional hardness, thermal conductivity (as much as 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it ideal for rough and radiative warmth dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) likewise provides exceptional electrical insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When combined right into a composite, these materials exhibit complementary habits: Si two N four improves toughness and damage resistance, while SiC improves thermal management and use resistance.
The resulting hybrid ceramic achieves a balance unattainable by either stage alone, creating a high-performance structural product customized for severe solution conditions.
1.2 Composite Design and Microstructural Engineering
The style of Si five N FOUR– SiC compounds involves specific control over phase circulation, grain morphology, and interfacial bonding to maximize synergistic results.
Normally, SiC is presented as great particle support (ranging from submicron to 1 µm) within a Si three N four matrix, although functionally graded or split architectures are additionally checked out for specialized applications.
During sintering– normally via gas-pressure sintering (GENERAL PRACTITIONER) or warm pushing– SiC particles affect the nucleation and development kinetics of β-Si three N ₄ grains, commonly advertising finer and even more consistently oriented microstructures.
This refinement improves mechanical homogeneity and minimizes defect size, adding to better stamina and integrity.
Interfacial compatibility in between both stages is crucial; because both are covalent ceramics with similar crystallographic symmetry and thermal expansion actions, they create meaningful or semi-coherent boundaries that stand up to debonding under load.
Additives such as yttria (Y ₂ O ₃) and alumina (Al ₂ O THREE) are utilized as sintering help to promote liquid-phase densification of Si four N four without jeopardizing the stability of SiC.
However, excessive secondary stages can weaken high-temperature performance, so composition and processing must be maximized to lessen lustrous grain border movies.
2. Processing Strategies and Densification Challenges
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
Top Notch Si Five N FOUR– SiC composites begin with homogeneous blending of ultrafine, high-purity powders making use of wet round milling, attrition milling, or ultrasonic dispersion in natural or aqueous media.
Accomplishing consistent dispersion is vital to stop agglomeration of SiC, which can serve as anxiety concentrators and lower fracture strength.
Binders and dispersants are included in stabilize suspensions for shaping strategies such as slip casting, tape casting, or shot molding, relying on the desired element geometry.
Eco-friendly bodies are then thoroughly dried and debound to eliminate organics before sintering, a process requiring controlled heating prices to avoid fracturing or deforming.
For near-net-shape production, additive techniques like binder jetting or stereolithography are arising, enabling complex geometries previously unachievable with typical ceramic handling.
These techniques require tailored feedstocks with optimized rheology and eco-friendly stamina, frequently entailing polymer-derived porcelains or photosensitive materials packed with composite powders.
2.2 Sintering Mechanisms and Stage Security
Densification of Si Six N ₄– SiC composites is challenging as a result of the strong covalent bonding and limited self-diffusion of nitrogen and carbon at practical temperature levels.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y ₂ O FOUR, MgO) lowers the eutectic temperature and improves mass transportation with a transient silicate thaw.
Under gas pressure (commonly 1– 10 MPa N ₂), this melt facilitates rearrangement, solution-precipitation, and final densification while reducing decomposition of Si four N FOUR.
The presence of SiC impacts viscosity and wettability of the liquid phase, possibly modifying grain development anisotropy and last texture.
Post-sintering heat treatments may be put on crystallize recurring amorphous stages at grain borders, enhancing high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently used to validate stage purity, absence of undesirable second stages (e.g., Si two N TWO O), and uniform microstructure.
3. Mechanical and Thermal Efficiency Under Tons
3.1 Strength, Sturdiness, and Tiredness Resistance
Si Three N FOUR– SiC compounds show remarkable mechanical efficiency contrasted to monolithic porcelains, with flexural toughness exceeding 800 MPa and crack durability values reaching 7– 9 MPa · m ONE/ TWO.
The enhancing result of SiC fragments impedes dislocation activity and split breeding, while the elongated Si five N ₄ grains remain to give strengthening with pull-out and connecting systems.
This dual-toughening technique causes a product highly resistant to effect, thermal biking, and mechanical fatigue– important for revolving parts and structural components in aerospace and energy systems.
Creep resistance remains excellent approximately 1300 ° C, attributed to the stability of the covalent network and lessened grain border sliding when amorphous phases are lowered.
Solidity values usually vary from 16 to 19 Grade point average, offering outstanding wear and disintegration resistance in unpleasant settings such as sand-laden circulations or sliding contacts.
3.2 Thermal Administration and Environmental Resilience
The addition of SiC substantially raises the thermal conductivity of the composite, usually increasing that of pure Si two N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC content and microstructure.
This boosted warmth transfer capability allows for more effective thermal administration in parts exposed to extreme localized heating, such as burning linings or plasma-facing parts.
The composite maintains dimensional stability under steep thermal gradients, standing up to spallation and cracking due to matched thermal growth and high thermal shock parameter (R-value).
Oxidation resistance is one more essential benefit; SiC forms a safety silica (SiO ₂) layer upon direct exposure to oxygen at raised temperatures, which better densifies and secures surface area problems.
This passive layer protects both SiC and Si Four N ₄ (which likewise oxidizes to SiO ₂ and N ₂), making sure lasting longevity in air, vapor, or burning environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Equipment
Si Six N ₄– SiC composites are progressively released in next-generation gas wind turbines, where they make it possible for higher operating temperatures, boosted gas performance, and minimized air conditioning requirements.
Components such as generator blades, combustor liners, and nozzle guide vanes take advantage of the product’s capacity to stand up to thermal cycling and mechanical loading without considerable destruction.
In atomic power plants, especially high-temperature gas-cooled activators (HTGRs), these compounds work as gas cladding or structural assistances because of their neutron irradiation tolerance and fission item retention capacity.
In commercial setups, they are utilized in liquified metal handling, kiln furnishings, and wear-resistant nozzles and bearings, where standard steels would stop working prematurely.
Their lightweight nature (thickness ~ 3.2 g/cm FIVE) likewise makes them appealing for aerospace propulsion and hypersonic vehicle elements based on aerothermal heating.
4.2 Advanced Production and Multifunctional Assimilation
Emerging research concentrates on establishing functionally graded Si three N FOUR– SiC frameworks, where structure varies spatially to optimize thermal, mechanical, or electro-magnetic residential properties across a single element.
Crossbreed systems including CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si Two N ₄) press the limits of damages tolerance and strain-to-failure.
Additive manufacturing of these compounds allows topology-optimized warm exchangers, microreactors, and regenerative cooling networks with inner lattice structures unreachable by means of machining.
Additionally, their inherent dielectric buildings and thermal security make them candidates for radar-transparent radomes and antenna windows in high-speed platforms.
As demands expand for materials that perform reliably under extreme thermomechanical lots, Si four N ₄– SiC composites stand for a critical advancement in ceramic design, combining effectiveness with capability in a solitary, lasting platform.
In conclusion, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the staminas of two innovative ceramics to produce a hybrid system efficient in growing in the most serious operational atmospheres.
Their proceeded advancement will play a main duty ahead of time clean energy, aerospace, and commercial innovations in the 21st century.
