1. Material Principles and Crystallographic Properties

1.1 Stage Structure and Polymorphic Behavior

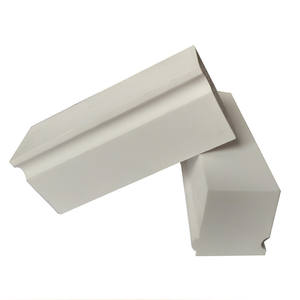

(Alumina Ceramic Blocks)

Alumina (Al Two O TWO), particularly in its α-phase form, is just one of the most widely made use of technological porcelains as a result of its exceptional balance of mechanical stamina, chemical inertness, and thermal stability.

While light weight aluminum oxide exists in numerous metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline structure at heats, identified by a dense hexagonal close-packed (HCP) plan of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial sites.

This gotten framework, called corundum, gives high latticework energy and strong ionic-covalent bonding, causing a melting point of roughly 2054 ° C and resistance to phase change under extreme thermal conditions.

The change from transitional aluminas to α-Al two O four commonly occurs over 1100 ° C and is accompanied by considerable quantity shrinking and loss of surface area, making phase control crucial during sintering.

High-purity α-alumina blocks (> 99.5% Al ₂ O SIX) show premium performance in severe environments, while lower-grade make-ups (90– 95%) might include additional stages such as mullite or glazed grain boundary phases for affordable applications.

1.2 Microstructure and Mechanical Stability

The efficiency of alumina ceramic blocks is profoundly influenced by microstructural features consisting of grain size, porosity, and grain limit cohesion.

Fine-grained microstructures (grain size < 5 µm) usually offer greater flexural strength (approximately 400 MPa) and enhanced fracture durability compared to grainy equivalents, as smaller sized grains impede fracture propagation.

Porosity, also at reduced levels (1– 5%), dramatically minimizes mechanical strength and thermal conductivity, necessitating full densification with pressure-assisted sintering approaches such as hot pushing or warm isostatic pressing (HIP).

Additives like MgO are commonly introduced in trace amounts (≈ 0.1 wt%) to hinder uncommon grain development throughout sintering, making sure uniform microstructure and dimensional stability.

The resulting ceramic blocks exhibit high hardness (≈ 1800 HV), superb wear resistance, and reduced creep rates at raised temperatures, making them appropriate for load-bearing and abrasive settings.

2. Manufacturing and Handling Techniques

( Alumina Ceramic Blocks)

2.1 Powder Preparation and Shaping Approaches

The production of alumina ceramic blocks starts with high-purity alumina powders derived from calcined bauxite through the Bayer process or manufactured via rainfall or sol-gel routes for greater pureness.

Powders are milled to achieve slim fragment size circulation, boosting packaging density and sinterability.

Forming right into near-net geometries is accomplished through various creating methods: uniaxial pushing for simple blocks, isostatic pushing for uniform density in complex shapes, extrusion for lengthy sections, and slip casting for detailed or big elements.

Each method affects environment-friendly body density and homogeneity, which directly influence last homes after sintering.

For high-performance applications, progressed developing such as tape spreading or gel-casting may be utilized to achieve remarkable dimensional control and microstructural uniformity.

2.2 Sintering and Post-Processing

Sintering in air at temperature levels between 1600 ° C and 1750 ° C allows diffusion-driven densification, where fragment necks grow and pores reduce, bring about a completely dense ceramic body.

Ambience control and specific thermal profiles are essential to prevent bloating, bending, or differential shrinkage.

Post-sintering operations include ruby grinding, splashing, and brightening to accomplish tight tolerances and smooth surface area coatings required in securing, sliding, or optical applications.

Laser cutting and waterjet machining permit exact modification of block geometry without inducing thermal stress and anxiety.

Surface therapies such as alumina layer or plasma spraying can even more improve wear or corrosion resistance in specialized service conditions.

3. Functional Residences and Performance Metrics

3.1 Thermal and Electric Actions

Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), dramatically higher than polymers and glasses, enabling reliable heat dissipation in digital and thermal monitoring systems.

They maintain architectural stability as much as 1600 ° C in oxidizing atmospheres, with low thermal expansion (≈ 8 ppm/K), adding to excellent thermal shock resistance when properly made.

Their high electrical resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric stamina (> 15 kV/mm) make them ideal electric insulators in high-voltage environments, consisting of power transmission, switchgear, and vacuum systems.

Dielectric continuous (εᵣ ≈ 9– 10) remains stable over a broad regularity array, sustaining use in RF and microwave applications.

These buildings enable alumina obstructs to operate accurately in settings where organic materials would certainly deteriorate or fail.

3.2 Chemical and Environmental Longevity

Among one of the most valuable characteristics of alumina blocks is their phenomenal resistance to chemical strike.

They are extremely inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in strong caustics at raised temperatures), and molten salts, making them appropriate for chemical handling, semiconductor manufacture, and contamination control devices.

Their non-wetting habits with several liquified metals and slags enables use in crucibles, thermocouple sheaths, and heater linings.

Furthermore, alumina is safe, biocompatible, and radiation-resistant, expanding its energy right into medical implants, nuclear protecting, and aerospace components.

Marginal outgassing in vacuum environments better qualifies it for ultra-high vacuum (UHV) systems in research and semiconductor manufacturing.

4. Industrial Applications and Technological Integration

4.1 Structural and Wear-Resistant Elements

Alumina ceramic blocks serve as important wear components in markets ranging from mining to paper production.

They are made use of as linings in chutes, hoppers, and cyclones to withstand abrasion from slurries, powders, and granular products, dramatically prolonging life span contrasted to steel.

In mechanical seals and bearings, alumina blocks offer low rubbing, high solidity, and corrosion resistance, minimizing upkeep and downtime.

Custom-shaped blocks are integrated into reducing tools, dies, and nozzles where dimensional security and edge retention are paramount.

Their lightweight nature (density ≈ 3.9 g/cm ³) also adds to energy savings in moving components.

4.2 Advanced Design and Emerging Utilizes

Past traditional roles, alumina blocks are significantly used in sophisticated technological systems.

In electronics, they operate as insulating substratums, warmth sinks, and laser tooth cavity components as a result of their thermal and dielectric homes.

In energy systems, they act as solid oxide gas cell (SOFC) elements, battery separators, and blend reactor plasma-facing products.

Additive production of alumina by means of binder jetting or stereolithography is arising, allowing complicated geometries formerly unattainable with standard creating.

Hybrid frameworks combining alumina with steels or polymers via brazing or co-firing are being established for multifunctional systems in aerospace and protection.

As material science advancements, alumina ceramic blocks continue to develop from easy architectural elements into active elements in high-performance, lasting engineering remedies.

In recap, alumina ceramic blocks stand for a fundamental course of advanced ceramics, integrating robust mechanical performance with phenomenal chemical and thermal security.

Their flexibility across industrial, digital, and clinical domain names underscores their long-lasting value in modern-day engineering and innovation advancement.
