1. Crystallography and Polymorphism of Titanium Dioxide
1.1 Anatase, Rutile, and Brookite: Structural and Digital Differences

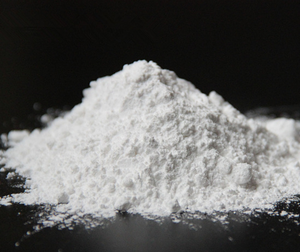

( Titanium Dioxide)
Titanium dioxide (TiO TWO) is a normally happening metal oxide that exists in 3 primary crystalline forms: rutile, anatase, and brookite, each displaying distinct atomic plans and digital buildings in spite of sharing the exact same chemical formula.
Rutile, the most thermodynamically steady phase, includes a tetragonal crystal structure where titanium atoms are octahedrally collaborated by oxygen atoms in a dense, linear chain setup along the c-axis, causing high refractive index and exceptional chemical security.
Anatase, also tetragonal yet with an extra open structure, has edge- and edge-sharing TiO six octahedra, bring about a greater surface energy and greater photocatalytic task as a result of boosted fee carrier movement and decreased electron-hole recombination rates.
Brookite, the least usual and most difficult to manufacture stage, embraces an orthorhombic framework with intricate octahedral tilting, and while much less studied, it reveals intermediate residential or commercial properties between anatase and rutile with arising interest in crossbreed systems.
The bandgap energies of these stages differ slightly: rutile has a bandgap of approximately 3.0 eV, anatase around 3.2 eV, and brookite regarding 3.3 eV, affecting their light absorption characteristics and viability for details photochemical applications.
Phase security is temperature-dependent; anatase generally changes irreversibly to rutile above 600– 800 ° C, a transition that must be regulated in high-temperature handling to maintain preferred functional homes.
1.2 Defect Chemistry and Doping Approaches
The functional convenience of TiO ₂ develops not just from its inherent crystallography but likewise from its capability to fit point issues and dopants that customize its electronic framework.
Oxygen jobs and titanium interstitials act as n-type contributors, increasing electrical conductivity and producing mid-gap states that can influence optical absorption and catalytic task.
Managed doping with metal cations (e.g., Fe FOUR ⁺, Cr Five ⁺, V FOUR ⁺) or non-metal anions (e.g., N, S, C) tightens the bandgap by introducing impurity levels, enabling visible-light activation– an important development for solar-driven applications.
As an example, nitrogen doping changes latticework oxygen sites, producing local states above the valence band that enable excitation by photons with wavelengths as much as 550 nm, dramatically increasing the functional part of the solar range.
These alterations are vital for getting rid of TiO two’s primary restriction: its broad bandgap limits photoactivity to the ultraviolet region, which comprises just around 4– 5% of occurrence sunshine.
( Titanium Dioxide)
2. Synthesis Techniques and Morphological Control
2.1 Conventional and Advanced Construction Techniques
Titanium dioxide can be manufactured with a selection of approaches, each supplying various degrees of control over phase purity, particle dimension, and morphology.
The sulfate and chloride (chlorination) processes are large commercial routes used largely for pigment production, including the digestion of ilmenite or titanium slag complied with by hydrolysis or oxidation to produce fine TiO ₂ powders.
For functional applications, wet-chemical techniques such as sol-gel processing, hydrothermal synthesis, and solvothermal courses are preferred because of their capacity to generate nanostructured materials with high area and tunable crystallinity.
Sol-gel synthesis, starting from titanium alkoxides like titanium isopropoxide, enables precise stoichiometric control and the development of slim films, monoliths, or nanoparticles through hydrolysis and polycondensation reactions.
Hydrothermal approaches enable the development of distinct nanostructures– such as nanotubes, nanorods, and ordered microspheres– by regulating temperature, pressure, and pH in liquid settings, often using mineralizers like NaOH to promote anisotropic growth.
2.2 Nanostructuring and Heterojunction Engineering
The performance of TiO two in photocatalysis and energy conversion is extremely dependent on morphology.
One-dimensional nanostructures, such as nanotubes created by anodization of titanium metal, give straight electron transportation paths and big surface-to-volume proportions, enhancing cost separation performance.
Two-dimensional nanosheets, especially those subjecting high-energy aspects in anatase, show superior sensitivity because of a greater density of undercoordinated titanium atoms that work as energetic sites for redox responses.
To further improve performance, TiO two is commonly integrated into heterojunction systems with various other semiconductors (e.g., g-C four N ₄, CdS, WO FIVE) or conductive assistances like graphene and carbon nanotubes.
These composites assist in spatial splitting up of photogenerated electrons and openings, lower recombination losses, and expand light absorption right into the noticeable variety through sensitization or band positioning results.
3. Functional Qualities and Surface Sensitivity
3.1 Photocatalytic Systems and Ecological Applications
The most popular property of TiO two is its photocatalytic task under UV irradiation, which enables the degradation of organic toxins, bacterial inactivation, and air and water filtration.
Upon photon absorption, electrons are delighted from the valence band to the transmission band, leaving behind openings that are effective oxidizing representatives.
These cost carriers react with surface-adsorbed water and oxygen to create reactive oxygen types (ROS) such as hydroxyl radicals (- OH), superoxide anions (- O TWO ⁻), and hydrogen peroxide (H ₂ O TWO), which non-selectively oxidize natural contaminants right into CO ₂, H ₂ O, and mineral acids.
This mechanism is manipulated in self-cleaning surfaces, where TiO ₂-coated glass or floor tiles damage down organic dust and biofilms under sunlight, and in wastewater therapy systems targeting dyes, pharmaceuticals, and endocrine disruptors.
Furthermore, TiO ₂-based photocatalysts are being developed for air filtration, getting rid of unstable organic compounds (VOCs) and nitrogen oxides (NOₓ) from indoor and city atmospheres.
3.2 Optical Spreading and Pigment Functionality
Beyond its reactive residential properties, TiO two is the most extensively used white pigment worldwide as a result of its phenomenal refractive index (~ 2.7 for rutile), which enables high opacity and illumination in paints, coatings, plastics, paper, and cosmetics.
The pigment functions by scattering noticeable light successfully; when bit size is optimized to around half the wavelength of light (~ 200– 300 nm), Mie spreading is maximized, leading to remarkable hiding power.
Surface area treatments with silica, alumina, or organic finishes are applied to enhance dispersion, lower photocatalytic task (to prevent destruction of the host matrix), and enhance longevity in exterior applications.
In sunscreens, nano-sized TiO two provides broad-spectrum UV security by scattering and taking in unsafe UVA and UVB radiation while staying transparent in the visible variety, using a physical barrier without the dangers connected with some natural UV filters.
4. Arising Applications in Power and Smart Products
4.1 Role in Solar Energy Conversion and Storage
Titanium dioxide plays a critical role in renewable resource innovations, most significantly in dye-sensitized solar batteries (DSSCs) and perovskite solar cells (PSCs).
In DSSCs, a mesoporous film of nanocrystalline anatase works as an electron-transport layer, accepting photoexcited electrons from a dye sensitizer and performing them to the outside circuit, while its broad bandgap makes sure marginal parasitic absorption.
In PSCs, TiO ₂ functions as the electron-selective get in touch with, helping with charge removal and boosting tool security, although research study is recurring to replace it with much less photoactive choices to enhance longevity.
TiO two is likewise explored in photoelectrochemical (PEC) water splitting systems, where it functions as a photoanode to oxidize water into oxygen, protons, and electrons under UV light, adding to eco-friendly hydrogen production.
4.2 Integration right into Smart Coatings and Biomedical Instruments
Innovative applications include smart home windows with self-cleaning and anti-fogging abilities, where TiO two coverings react to light and moisture to keep transparency and hygiene.
In biomedicine, TiO ₂ is examined for biosensing, drug distribution, and antimicrobial implants because of its biocompatibility, stability, and photo-triggered sensitivity.
For example, TiO ₂ nanotubes expanded on titanium implants can advertise osteointegration while offering localized anti-bacterial activity under light exposure.
In recap, titanium dioxide exhibits the convergence of basic materials scientific research with functional technological innovation.
Its one-of-a-kind mix of optical, digital, and surface chemical residential or commercial properties makes it possible for applications ranging from everyday customer products to cutting-edge ecological and power systems.
As research breakthroughs in nanostructuring, doping, and composite layout, TiO ₂ continues to evolve as a cornerstone product in lasting and wise modern technologies.
