1. Structure and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Security

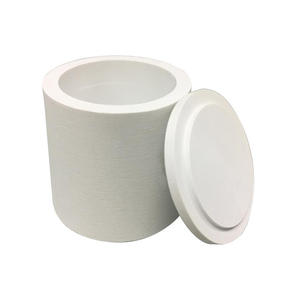

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from fused silica, a synthetic type of silicon dioxide (SiO TWO) derived from the melting of all-natural quartz crystals at temperature levels surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys outstanding thermal shock resistance and dimensional stability under fast temperature level adjustments.
This disordered atomic framework stops cleavage along crystallographic airplanes, making merged silica much less vulnerable to fracturing throughout thermal cycling contrasted to polycrystalline porcelains.
The product shows a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among design materials, allowing it to stand up to extreme thermal gradients without fracturing– a vital residential property in semiconductor and solar cell manufacturing.
Merged silica additionally maintains excellent chemical inertness against a lot of acids, liquified steels, and slags, although it can be slowly etched by hydrofluoric acid and hot phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, relying on purity and OH content) allows sustained operation at raised temperature levels needed for crystal development and steel refining procedures.
1.2 Purity Grading and Micronutrient Control
The efficiency of quartz crucibles is very dependent on chemical pureness, specifically the focus of metal impurities such as iron, salt, potassium, light weight aluminum, and titanium.
Also trace amounts (components per million level) of these contaminants can migrate right into molten silicon during crystal development, weakening the electrical properties of the resulting semiconductor material.
High-purity qualities made use of in electronic devices producing usually contain over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and shift metals below 1 ppm.
Impurities stem from raw quartz feedstock or processing devices and are lessened via mindful choice of mineral resources and purification methods like acid leaching and flotation.
Additionally, the hydroxyl (OH) material in merged silica affects its thermomechanical habits; high-OH types provide better UV transmission yet reduced thermal security, while low-OH versions are chosen for high-temperature applications because of decreased bubble formation.
( Quartz Crucibles)
2. Manufacturing Process and Microstructural Layout
2.1 Electrofusion and Forming Strategies
Quartz crucibles are mainly produced using electrofusion, a process in which high-purity quartz powder is fed right into a rotating graphite mold within an electric arc heater.
An electric arc produced in between carbon electrodes melts the quartz bits, which strengthen layer by layer to develop a smooth, dense crucible form.
This technique produces a fine-grained, homogeneous microstructure with minimal bubbles and striae, crucial for uniform warm circulation and mechanical integrity.
Alternate approaches such as plasma blend and fire fusion are utilized for specialized applications needing ultra-low contamination or details wall surface thickness profiles.
After casting, the crucibles go through regulated cooling (annealing) to soothe interior tensions and stop spontaneous breaking throughout solution.
Surface area completing, including grinding and polishing, makes certain dimensional accuracy and minimizes nucleation sites for unwanted crystallization throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying function of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer framework.
During production, the internal surface area is frequently dealt with to promote the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial home heating.
This cristobalite layer acts as a diffusion obstacle, minimizing direct communication in between liquified silicon and the underlying integrated silica, therefore lessening oxygen and metal contamination.
Furthermore, the visibility of this crystalline phase improves opacity, improving infrared radiation absorption and advertising even more uniform temperature level circulation within the thaw.
Crucible designers very carefully balance the thickness and continuity of this layer to avoid spalling or cracking because of quantity modifications throughout phase transitions.
3. Practical Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, working as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon kept in a quartz crucible and slowly pulled up while revolving, allowing single-crystal ingots to form.
Although the crucible does not straight get in touch with the growing crystal, interactions between liquified silicon and SiO two wall surfaces result in oxygen dissolution right into the melt, which can affect carrier life time and mechanical toughness in completed wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the regulated air conditioning of countless kgs of liquified silicon right into block-shaped ingots.
Right here, finishes such as silicon nitride (Si six N FOUR) are put on the internal surface to prevent adhesion and facilitate easy release of the solidified silicon block after cooling down.
3.2 Degradation Mechanisms and Life Span Limitations
In spite of their effectiveness, quartz crucibles break down throughout repeated high-temperature cycles due to several interrelated mechanisms.
Thick flow or contortion occurs at prolonged exposure over 1400 ° C, causing wall surface thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite generates inner stresses due to quantity growth, potentially creating cracks or spallation that pollute the melt.
Chemical erosion emerges from reduction responses between liquified silicon and SiO ₂: SiO TWO + Si → 2SiO(g), generating unstable silicon monoxide that leaves and deteriorates the crucible wall surface.
Bubble development, driven by caught gases or OH groups, even more endangers architectural toughness and thermal conductivity.
These degradation pathways limit the number of reuse cycles and necessitate exact procedure control to make best use of crucible lifespan and product yield.
4. Emerging Technologies and Technological Adaptations
4.1 Coatings and Compound Alterations
To boost efficiency and durability, advanced quartz crucibles integrate functional coatings and composite structures.
Silicon-based anti-sticking layers and drugged silica coatings boost release qualities and reduce oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO TWO) bits right into the crucible wall to raise mechanical stamina and resistance to devitrification.
Research study is recurring right into totally transparent or gradient-structured crucibles created to maximize induction heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Challenges
With increasing demand from the semiconductor and photovoltaic or pv industries, lasting use of quartz crucibles has ended up being a concern.
Used crucibles infected with silicon deposit are hard to recycle because of cross-contamination risks, resulting in considerable waste generation.
Initiatives focus on developing reusable crucible linings, enhanced cleansing methods, and closed-loop recycling systems to recover high-purity silica for second applications.
As device efficiencies require ever-higher material purity, the function of quartz crucibles will certainly continue to evolve via advancement in products science and process engineering.
In recap, quartz crucibles represent an important user interface between resources and high-performance digital products.
Their distinct mix of pureness, thermal durability, and architectural style enables the construction of silicon-based innovations that power modern computing and renewable energy systems.
